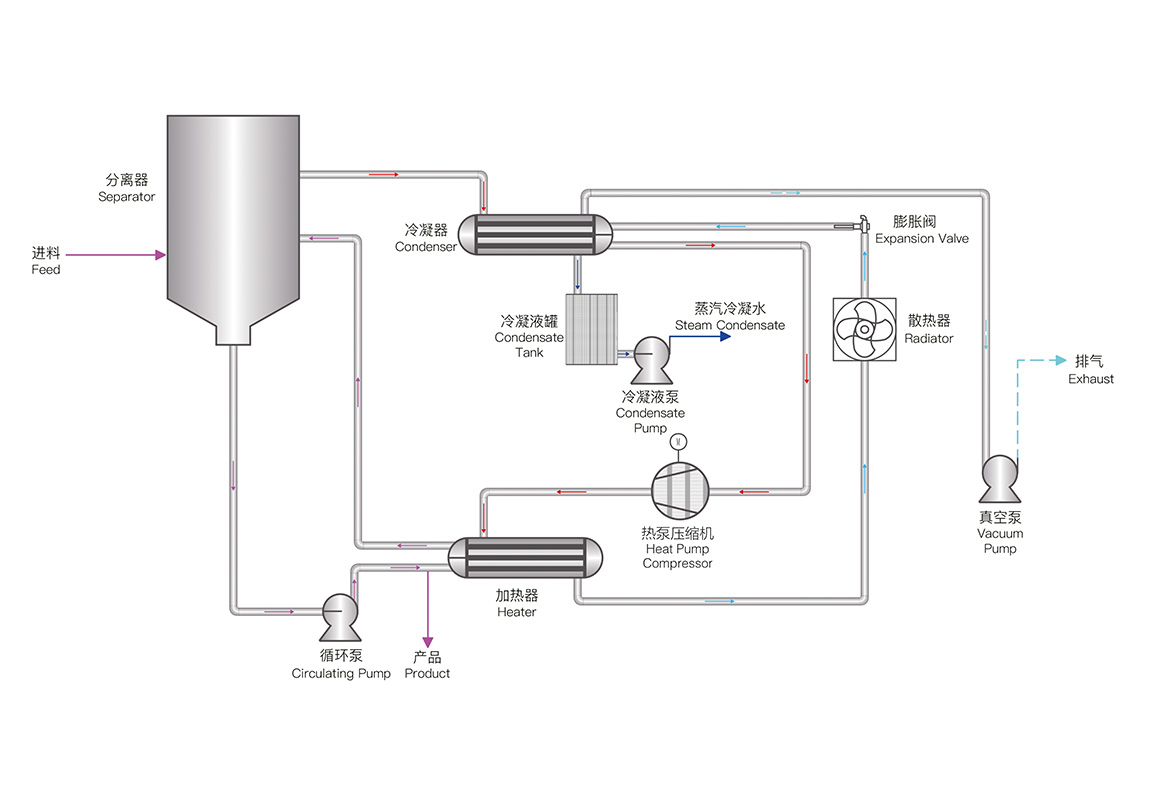

Product Structure

It consists of an evaporator, heat pump compressor, condenser and intelligent control system, and uses high-efficiency heat exchanger and heat pump unit to realize thermal energy circulation.

Operating Principle

Material evaporates under low-temperature conditions to generate secondary vapor. A thermal pump compressor upgrades the low-temperature vapor into high-grade heat for reuse in the evaporator, creating a closed thermal cycle. Only minimal electrical energy is required to drive the compressor, enabling high-efficiency evaporation with condensate recovery and concentrated product discharge.
